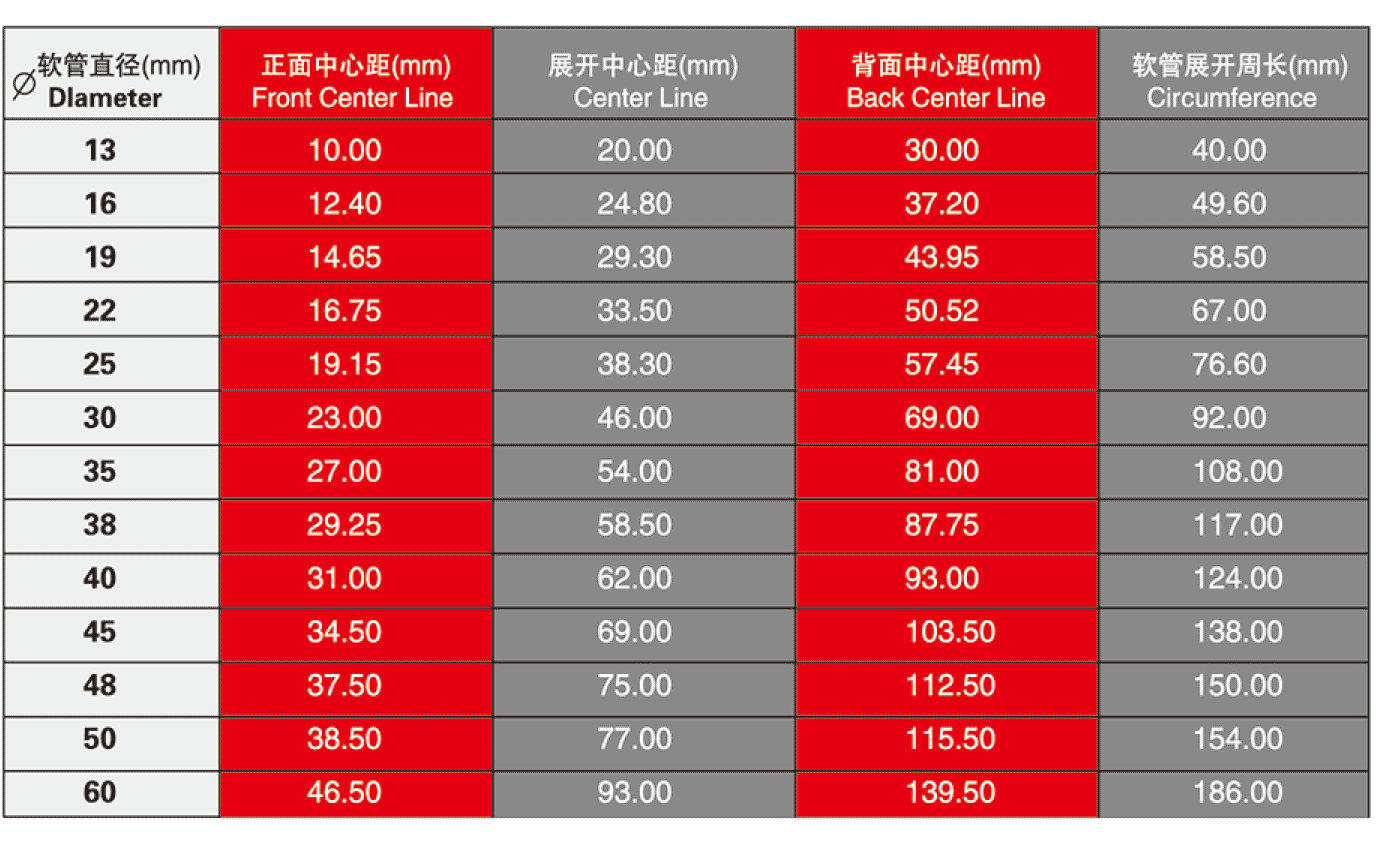

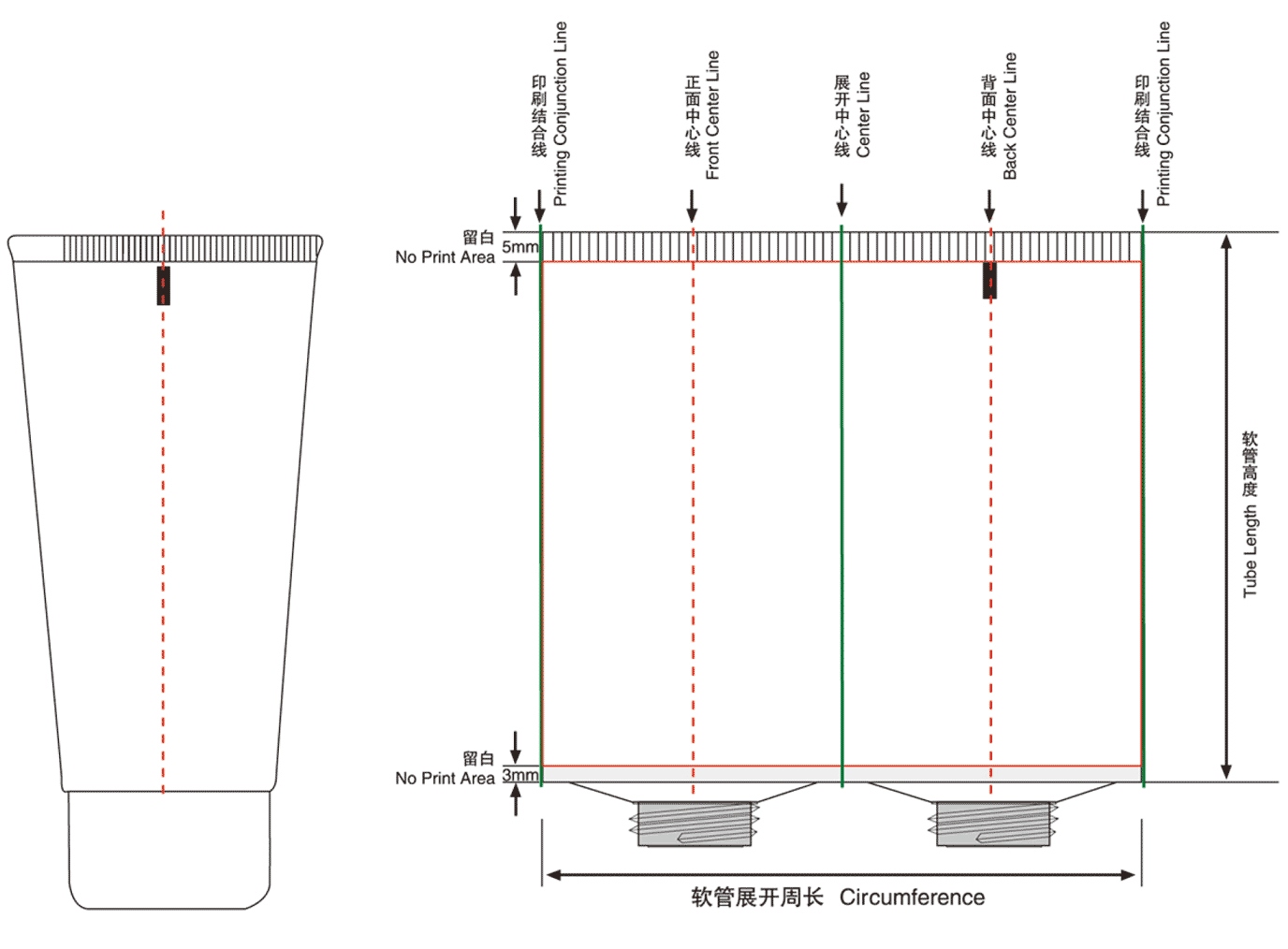

软管印刷尺寸图

(1)生产后整体收缩约2.0%;

  Product may shrink by 2.0% following production

(2)圆周印刷拼预留1.5mm重叠量;

  1.5mm must be reserved for circumference printing

(3)标准电眼尺寸为2.0mm x 7.0mm，可按要求特别制作;

  Standard xize for eye mark is 2.0mm x 7.0mm, othersizes  are available on request

(4)管扁不印刷留白3mm，管尾不印刷留白5mm，也可根据需要调整。

  No print area next to the tube shoulder is 3mm, no print aera on the tube tail is 5mm,  they can be adjusted according to the requirement.

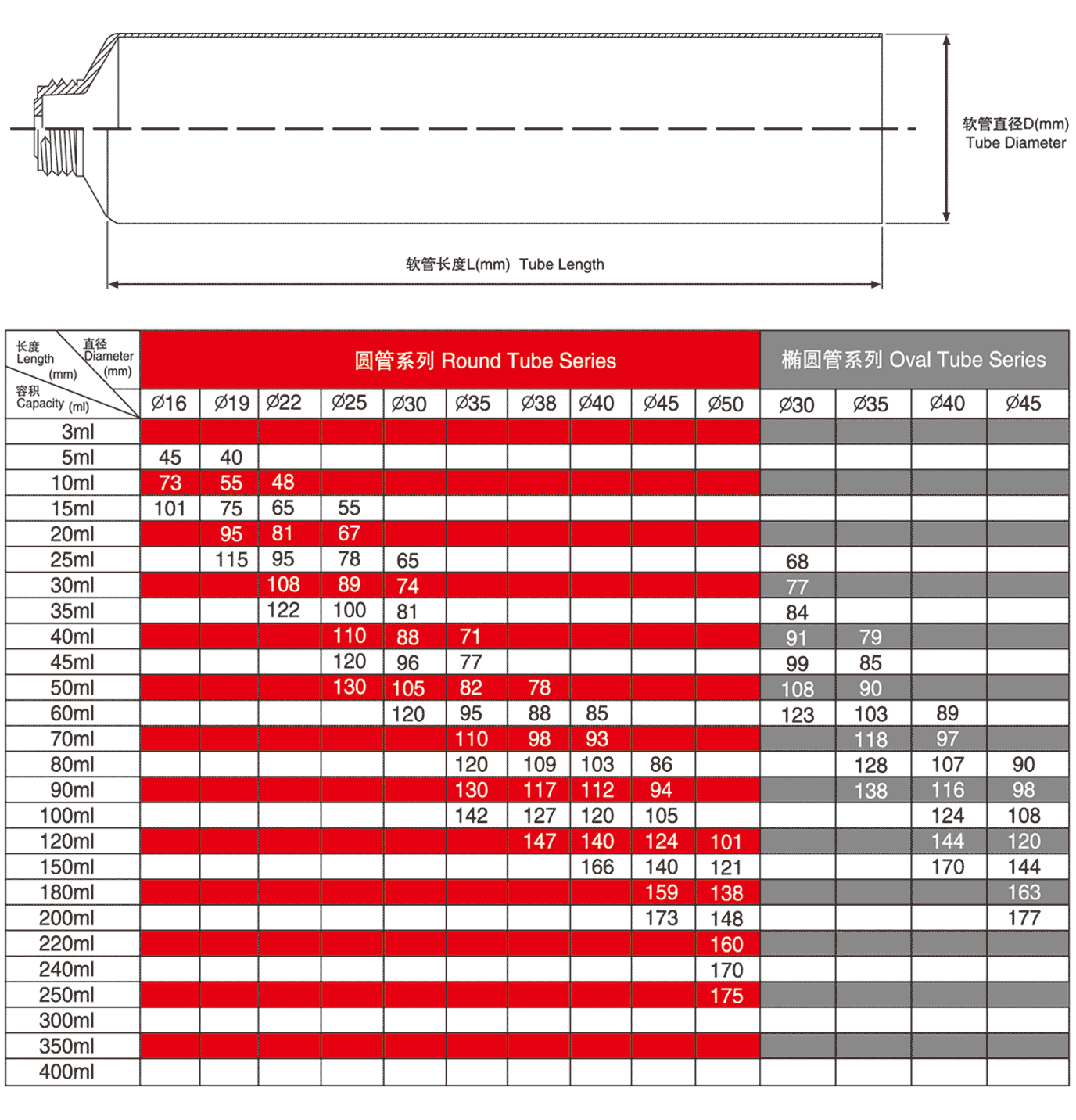

软管尺寸与容积参考

(1) 软管直径固定，长度可酌量伸减;

  Tube diameter is set,length can be adjusted

(2) 以上容量表谨做参考，可以根据客户需求在一定范围内调整；

  Specifications are for reference only,and customer sizes are available

(3) 上表所列管长封尾后测量的结果，如客户自行封尾，管长需增加10-20mm.

  Above tube length are the testingresult after the sealing,if customer seals the tubes by himself,the tube length should increase 10-20mm.
